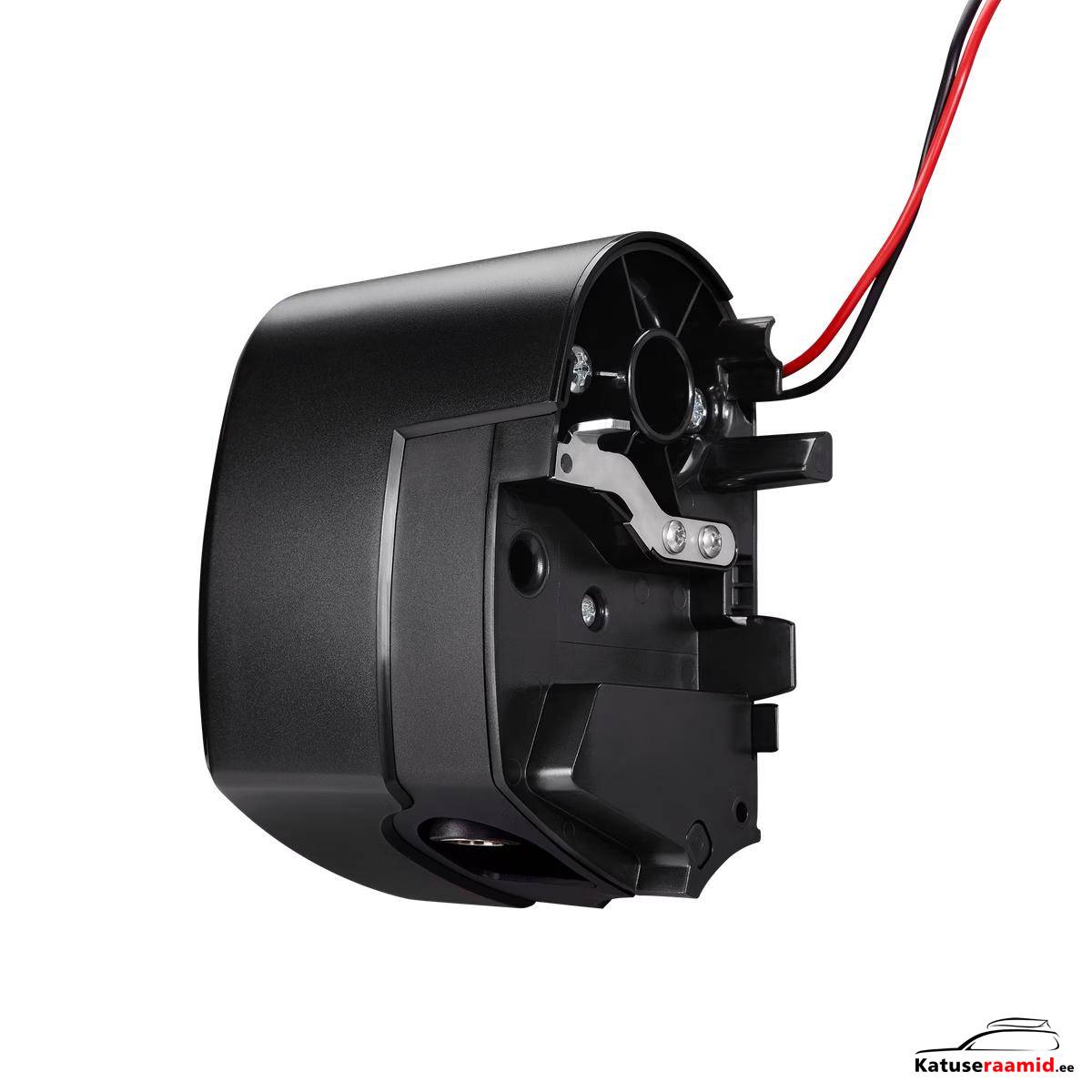

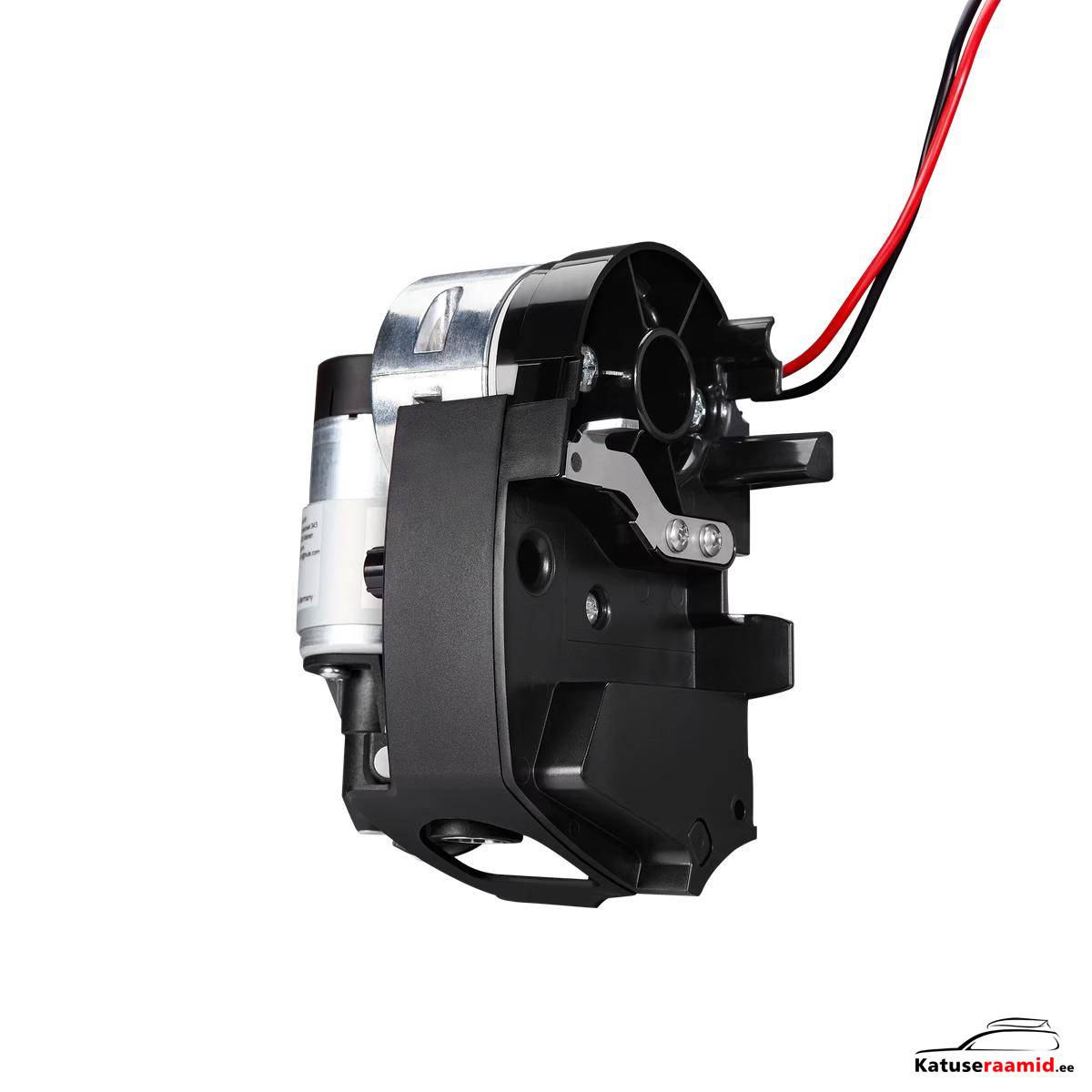

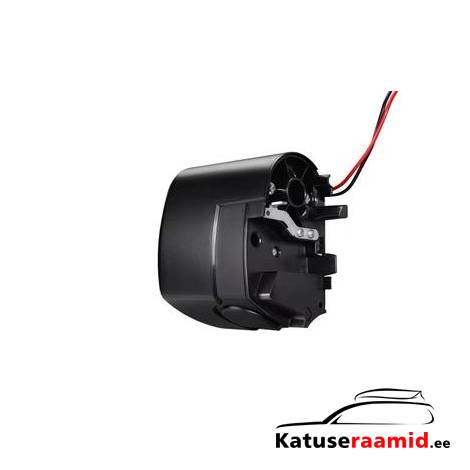

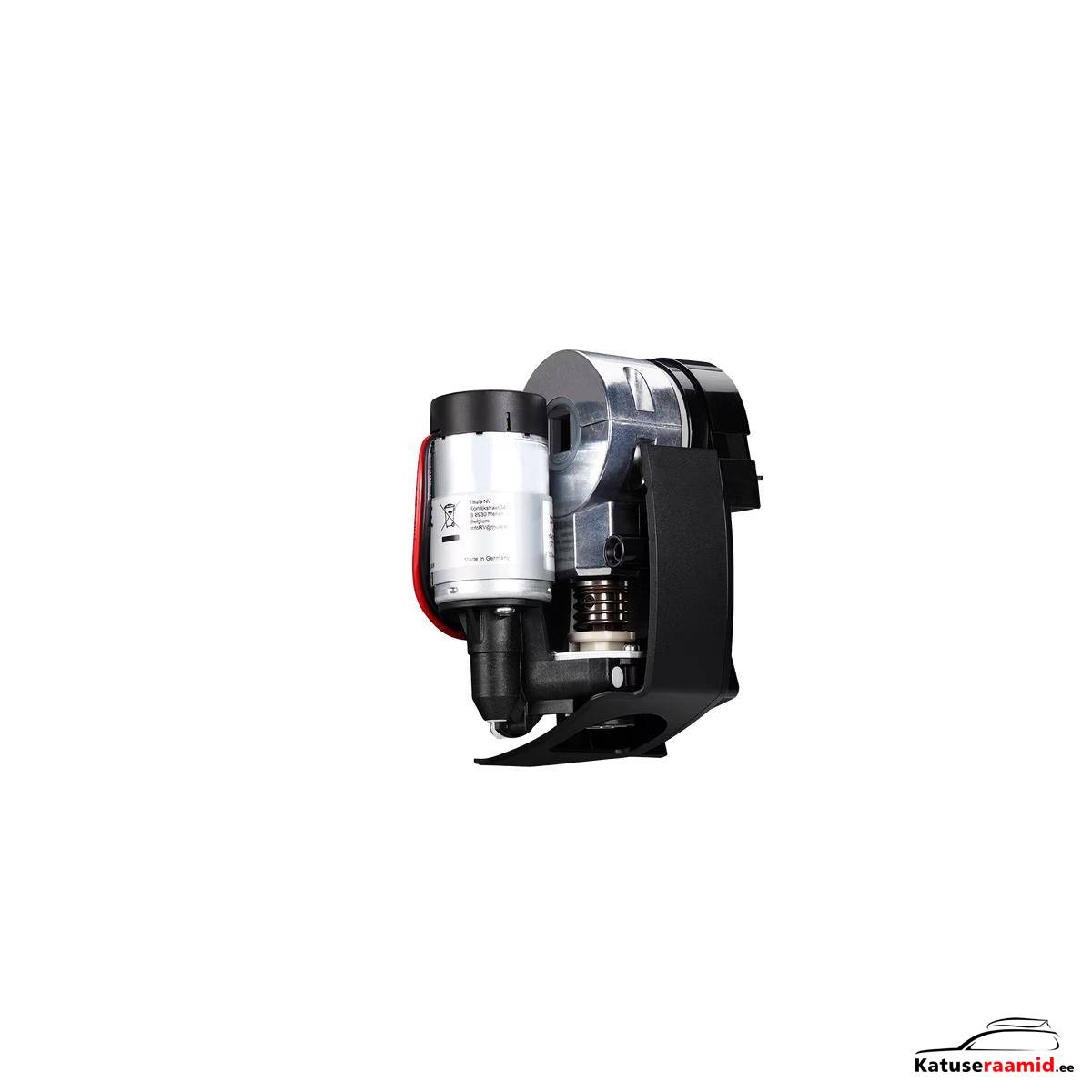

Thule Motor Kit TO 5200 - Black
Key Features:
-
Voltage: 12 VDC
-
Retrofit installation by replacing the gearbox (for awnings from 3.02 m and longer)
-
Pre-installed version (limited range): -
Awnings from 3.00 to 5.00 m
-
Fabric: Mystic Grey 31

-
Advantages:
-

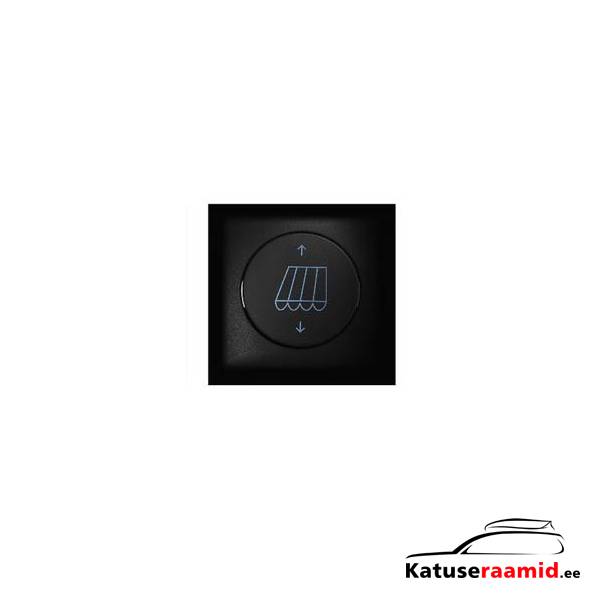

Easy one-touch control
-
Automatically stops when fully opened or closed
-
Auto-Tension function: adds tension when open
-
Manual override with crank in case of power failure
-
Thermal protection and EMC approved
-
Protection against reverse polarity and short circuits
-
Relay included to prevent use while driving
-
Only 1 kg heavier than a manual version
-
Adds only 3 cm in length
-
Available colours: white, anodised, anthracite
Technical Specifications:
-
Current consumption: -
Operating: 3A
-
Start: 7A
-
Peak: 17A

-
-
Noise level: 65 dBA
-
Installation note: -
Voltage must remain above 12V at source
-
If cable exceeds 10 m, use ø 4 mm² (AWG 11) copper wire instead of ø 2.5 mm²

-
